Overview - Impact Member

WARNING: This page is about a different variant/trim than selected.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

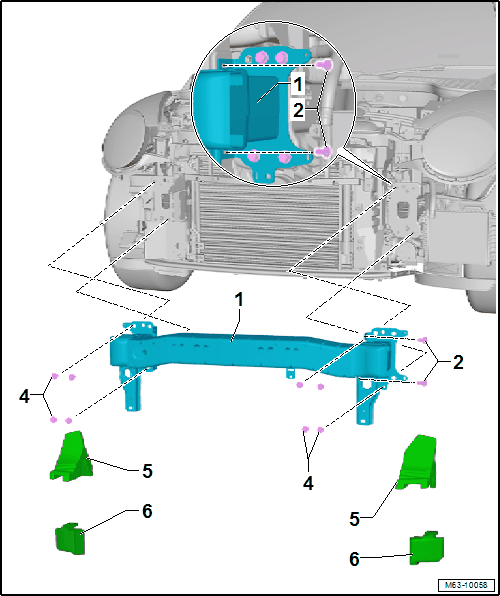

Front Bumper Carrier
- Note the installed dimensions. Refer to Fig 1
- For North America in connection with the foam piece
- Allocation. Refer to the Parts Information.
Bolt
- 8 Nm
- Note the installed dimensions. Refer to Fig 1
- Quantity: 2 on each side
Bolt
- Convertible only
- Quantity: 1 on each side
Bolt
- 60 Nm
- Quantity: 4 on each side
Foam Piece
- Self-adhesive
- For USA and Canada and Rest of World
Foam Piece
- Self-adhesive
- Only for Rest of World

Installed Dimension for the Front Bumper Carrier on the Lock Carrier

Fig 1: Identifying Installed Dimension For Front Bumper Carrier On Lock Carrier

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

WARNING:

Follow the following steps when installing the front bumper carrier -1- on the lock carrier -2-.

Dimension -a- = 1 mm

Dimension -b- = 10 mm

Tightening Specifications

Component	Tightening Specification
Bolt -3-	8 Nm
