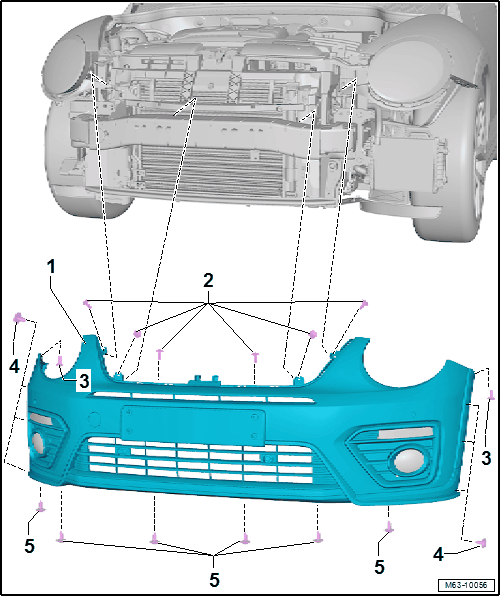

Overview - Bumper Cover
WARNING: This page is about a different variant/trim than selected.
NOTE:
Depending on the model version, there are minor differences in the front bumper covers.
- Front Bumper Cover
- PP/EPDM material
- There are different versions. Refer to the Parts Information.
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
- Bolt
- 2 Nm
- Attached to the lock carrier
- Quantity: 6
- Bolt
- 2 Nm
- Pointing upward
- Quantity: 1 on each side
- Bolt
- 2 Nm
- Wheel housing liner retainer on bumper cover
- Quantity: 3 on each side
- Bolt
- 2 Nm
- Attached to the lock carrier
- Quantity: 6
