Bracket, Removing and Installing: Removing

-- Remove the nuts -1- for the bracket -2-.

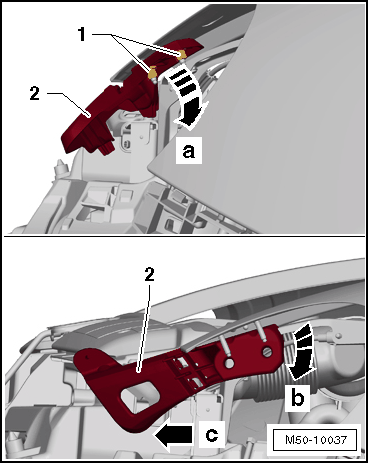

Fig 1: Identifying Nuts And Bracket

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tilt the bracket -2- inward from the threaded pin in direction of -arrow a-.

-- Finally, remove the bracket -2- forward and downward in direction of -arrow b and arrow c-.
