Brake Rotor, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

When removing, mark the brake pads that will be used again

Install in the same position, otherwise the braking effect will be uneven.

Do not open the brake hydraulic system when removing!

-- Loosen the wheel bolts.

-- Raise the vehicle.

-- Remove the wheel.

-- Remove the brake pads. Refer to BRAKE PADS, REMOVING AND INSTALLING .

-- Remove the brake caliper and secure it with wire so that the weight of the brake caliper does not burden or damage the brake hose.

-- Remove the brake carrier. Refer to BRAKE CARRIER, REMOVING AND INSTALLING .

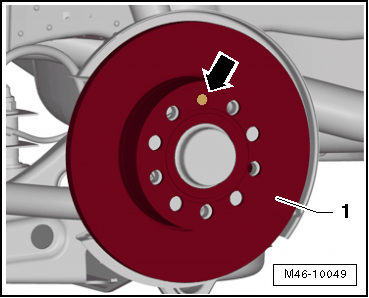

-- Loosen the threaded connection -arrow- of the brake rotor -1-.

Fig 1: Identifying Brake Rotor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the brake rotor.

Cleaning:

WARNING:

Do not blow the brake system using compressed air, the dust produced is harmful to health!

Only Use Mineral Spirits for Cleaning the Brake System
