Brake Carrier, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
When removing, mark the brake pads that will be used again
Install in the same position, otherwise the braking effect will be uneven.
Do not open the brake hydraulic system when removing!
-- Loosen the wheel bolts.
-- Raise the vehicle.
-- Remove the wheel.
-- Remove the brake pads. Refer to BRAKE PADS, REMOVING AND INSTALLING .
-- Remove the brake caliper and secure it with wire so that the weight of the brake caliper does not burden or damage the brake hose.

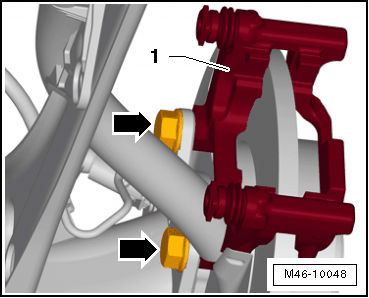

-- Remove the threaded connection -arrows- of the brake carrier -1-.
-- Remove the brake carrier -1-.
Cleaning:
WARNING:
Do not blow the brake system using compressed air, the dust produced is harmful to health!
Only use mineral spirits for cleaning the brake system
