Parking Brake Lever, Removing And Installing: Installing

WARNING: This page is about a different variant/trim than selected.

Install in reverse order of removal. Note the following:

If the Parking Brake Lever Was Replaced:

WARNING:

Do not reuse the handle for the parking brake lever.

-- Tighten the parking brake.

NOTE:

Pay attention to the direction of installation before installing the parking brake lever trim!

-- Remove handle -2- and adhesive strip to prevent damage.

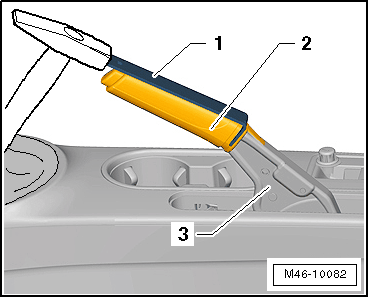

Fig 1: Identifying Assembly Tool T10488, Handle And Parking Brake Lever

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the handle -2- on the parking brake lever -3-.

-- Use the : T10488 -1-.

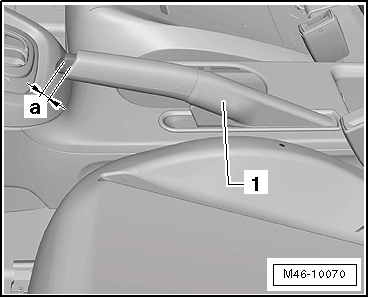

-- Mount the handle carefully on the parking brake lever -1- until dimension -a- is reached.

Fig 2: Installing Handle Onto Parking Brake Lever

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Ma B a -

= 10 mm ± 1 mm

-- Remove the adhesive tape.

Continuation for All Versions:

-- Pull parking brake lever trim -1- over handle.

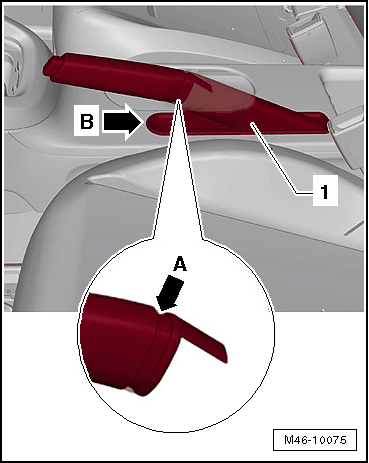

Fig 3: Installing Parking Brake Lever Trim In Center Console

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the parking brake lever trim -1- into the groove -arrow A- in the handle.

-- Insert the parking brake lever trim -1- into the center console and clip it in the front -arrow B-.

-- Adjust the parking brake. Refer to PARKING BRAKE, ADJUSTING .
