Overview Without Brake Pad Wear Indicator, Brake Caliper FS III
WARNING: This page is about a different variant/trim than selected.
NOTE:
After replacing brake pads, depress brake pedal several times firmly to properly seat brake pads in their normal operating position.
Use the : VAS5234 to extract brake fluid from the brake fluid reservoir.
Install the : VAG1869/2 before removing a brake caliper or disconnecting a brake hose (doing so reduces the pressure).

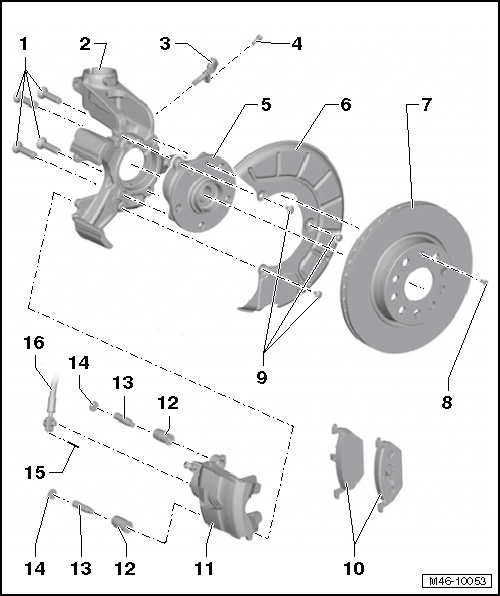

- Bolt
- 70 Nm +90°
- Always replace if removed
- Quantity: 4
- Wheel Bearing Housing
- With integrated brake carrier
- Front Speed Sensor
- Before inserting the sensor, clean the inner surface of the hole and coat with Hot Bolt Paste.
- Bolt
- 8 Nm
- Wheel Bearing Unit
- The ABS sensor ring is installed in the wheel bearing
- Cover Plate
- Removing and installing. Refer to COVER PLATE, REMOVING AND INSTALLING, BRAKE CALIPER FS III .
- Brake Rotor
- Internally vented
- 280 mm diameter
- Thickness 22 mm
- Wear limit: 19 mm
- Replace on each axle
- Removing and installing. Refer to BRAKE ROTOR, REMOVING AND INSTALLING, BRAKE CALIPER FS III .
- Do not use excessive force to separate the brake rotor from the wheel hub. Use rust remover, if necessary, otherwise the brake rotor could be damaged.
- Bolt
- 8 Nm
- Bolt
- 12 Nm
- Brake Pads
- 14 mm thick without backing plate
- Wear limit: 2 mm without backing plate
- Checking thickness. Refer to FRONT AND REAR BRAKE PAD THICKNESS AND BRAKE ROTOR CONDITION, CHECKING .
- Replace on each axle
- Removing and installing. Refer to BRAKE PADS, REMOVING AND INSTALLING, BRAKE CALIPER FS III .
- Brake Caliper
- Do not remove the brake hose when changing the brake pads.
- Removing and installing. Refer to BRAKE CALIPER, REMOVING AND INSTALLING, BRAKE CALIPER FS III .
- Servicing. Refer to FRONT BRAKE CALIPER .
- Bearing Bushing
- Guide Pin
- 30 Nm
- Cap
- Remove
- Adapter Sleeve
- Brake Hose with Ring Connection and Banjo Bolt
- 35 Nm
