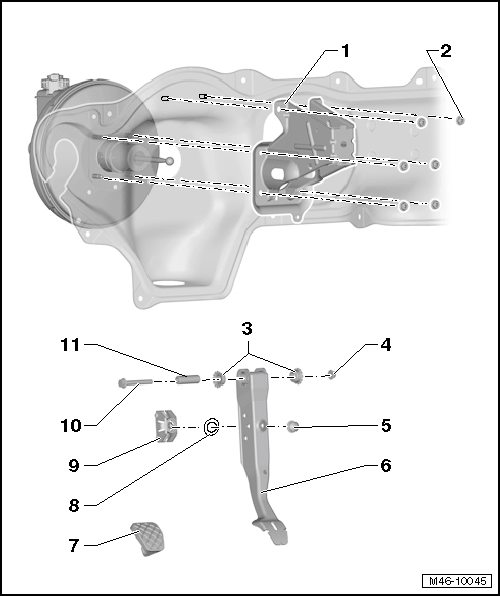

Overview - Brake Pedal
WARNING: This page is about a different variant/trim than selected.
WARNING:
The path of the brake pedal must not be shortened by extra floor mats.
Before installing, lubricate all bearing areas with Grease.
- Mounting Bracket
- Removing and installing. Refer to MOUNTING BRACKET, REMOVING AND INSTALLING .
- Nut
- 25 Nm
- Always replace if removed

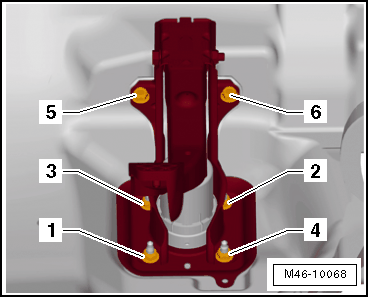

- Note the tightening sequence. Refer to Figure.
- Quantity: 6
- Bearing Bushing
- Nut
- 25 Nm
- Always replace if removed
- Stop Buffer
- Brake Pedal
- Removing and installing. Refer to BRAKE PEDAL, REMOVING AND INSTALLING .
- Cap
- Bearing Shell
- Mount
- For the brake booster push rod ball head
- Disconnect the ball head from the mount. Refer to BRAKE PEDAL, DISCONNECTING FROM BRAKE BOOSTER .
- Clip the ball head to the mount. Refer to BRAKE PEDAL, ATTACHING TO BRAKE BOOSTER .
- Bolt
- Mounting Pin
