Overview - Brake Pedal, RHD

WARNING: This page is about a different variant/trim than selected.
WARNING:

The path of the brake pedal must not be shortened by extra floor mats.

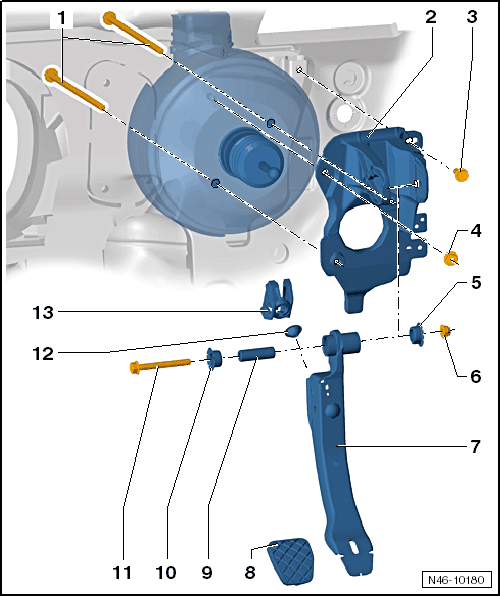

Fig 1: Brake Pedal Exploded View (RHD)
GWWN46-10180Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Twelve point bolt
    • 25 Nm
  2. Mounting Bracket
  3. Hex Bolt
    • 25 Nm
  4. Hex Nut
    • 25 Nm
    • Always replace if removed
    • Self-locking
  5. Bearing Bushing
  6. Hex Nut
    • 25 Nm
    • Always replace if removed
    • Self-locking
  7. Brake Pedal
  8. Cap
  9. Mounting Pin
  10. Bearing Bushing
  11. Hex Bolt
  12. Bearing Shell
  13. Mount
    • For the brake booster push rod ball head
