Mounting Bracket, Removing And Installing, RHD: Installing

WARNING: This page is about a different variant/trim than selected.

Install in reverse order of removal. Note the following:

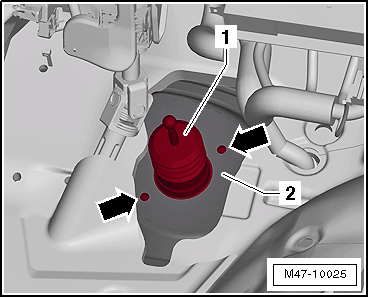

-- Make sure that the brake booster -1- sits correctly in the support openings -arrows- on the bulkhead -2-.

Fig 1: Identifying Brake Booster
GWWM47-10025Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Clip the brake pedal together with the brake booster. Refer to BRAKE PEDAL, ATTACHING TO BRAKE BOOSTER .

-- Check the coolant level. Refer to COOLANT, DRAINING AND FILLING (CPLA, CPPA, CPKA, CPRA) or COOLANT, DRAINING AND FILLING (DDSA, DDSB) .
