Brake Pedal, Removing And Installing, RHD Vehicle: Removing

WARNING: This page is about a different variant/trim than selected.

-- If equipped, remove the instrument panel trim panel -1- in the driver footwell. Refer to Vehicle Interior Trim Panels .

Fig 1: Identifying Instrument Panel Trim Panel And, Bolts And Diagnostic Plug

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- To do this, remove the bolts -arrows-.

-- Remove diagnostic plug -2-.

-- Remove the driver side footwell vent. Refer to AIR DUCT .

-- If equipped, remove the crash bolsters -2-. Refer to Overview - Steering Column .

Fig 2: Identifying Brake Pedal Crash Bolster & Mounting Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- To do this, remove the right bolts -1- and the brake pedal crash bolster -2-.

-- Disconnect the brake pedal from the brake booster. Refer to BRAKE PEDAL, DISCONNECTING FROM BRAKE BOOSTER .

-- Remove bolt -1- for brake pedal to the left.

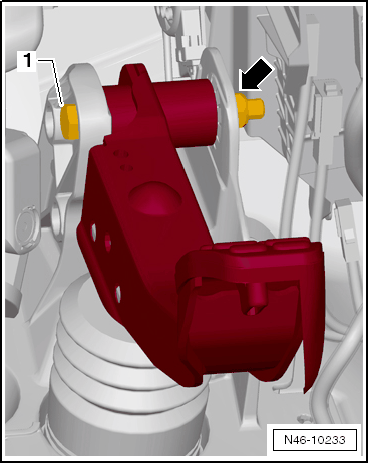

Fig 3: Identifying Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Counterhold at the nut -arrow-.

-- Remove the brake pedal.
