Overview - Vacuum Pump, Vehicles With 2.0L Gasoline Engine

WARNING: This page is about a different variant/trim than selected.

Must not be disassembled.

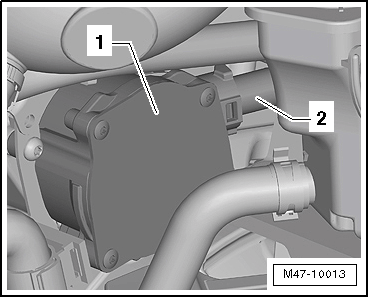

Fig 1: Brake Booster Vacuum Pump Assembly Components Location (Vehicles with 2.0L Gasoline Engine)
GWWM47-10013Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Vacuum Pump
  2. Vacuum Hose to Brake Booster with Check Valve

-- Vacuum pump, removing and installing. Refer to VACUUM PUMP, REMOVING AND INSTALLING (CPLA, CPPA, CPKA, CPRA) or VACUUM PUMP, REMOVING AND INSTALLING (DDSA, DDSB) .
