Overview - Vacuum Pump, Vehicles With 2.0L Diesel Engine

WARNING: This page is about a different variant/trim than selected.

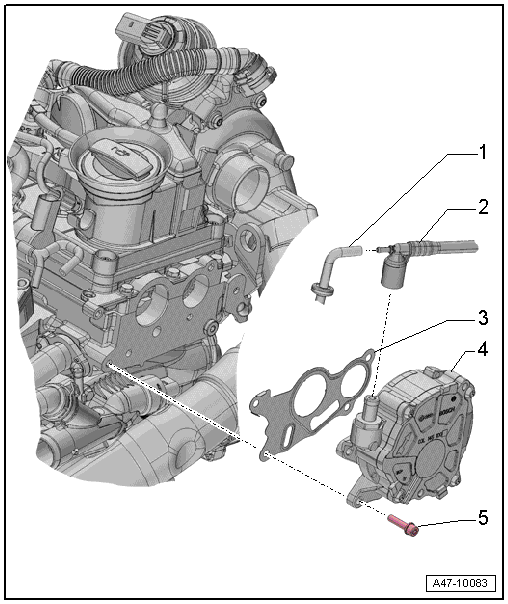

Fig 1: Exploded View Of Vacuum Pump (Vehicles with 2.0L Diesel Engine)
GWWA47-10083Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Vacuum Hose
    • Replace if damaged
  2. Vacuum Line
    • Replace if damaged
  3. Gasket
    • Replace after removing.
  4. Vacuum Pump
    • Refer to the appropriate service information .
  5. Bolt
    • 9 Nm
