Overview - Electric Vacuum Pump, Vehicles With 1.2L Gasoline Engine

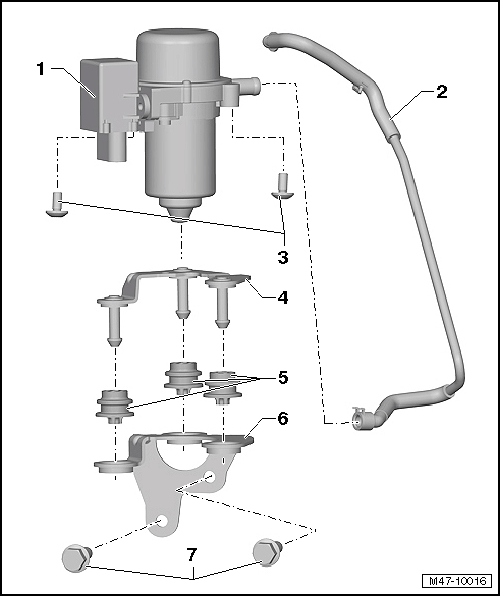

Fig 1: Exploded View Of Electric Vacuum Pump (Vehicles with 1.2L Gasoline Engine)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Brake System Vacuum Pump -V192-
   • Removing and Installing. Refer to ELECTRIC VACUUM PUMP, REMOVING AND INSTALLING .
2. Vacuum Line
3. Bolt
   • 8 Nm
4. Bracket
5. Rubber Bushing
   • Pay attention to proper seating
   • When installing, make sure the rubber bushings are not pushed out of the bracket.
6. Bracket
7. Bolt
   • 14 Nm
