Electric Vacuum Pump, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

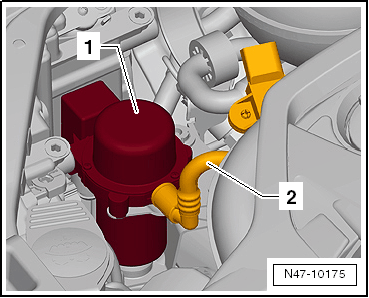

-- Disconnect the vacuum line -2- from the Brake System Vacuum Pump -V192- -1-.

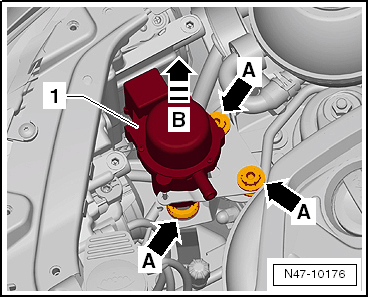

-- Pull the Brake System Vacuum Pump -V192- -1- out of the rubber bushing -A arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release and remove the connector.

-- Remove the Brake System Vacuum Pump -V192- -1- in the direction of -arrow B- upward.

-- Securely place the Brake System Vacuum Pump -V192- -1- together with the bracket -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

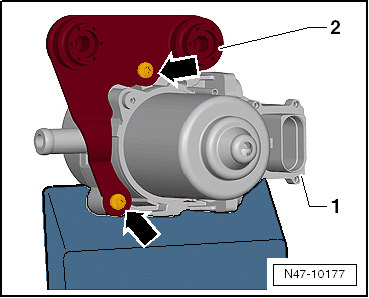

-- Remove the threaded connection -arrows- and remove the bracket -2- from the Brake System Vacuum Pump -V192- -1-
