Right/Left Front Abs Wheel Speed Sensor -G45- / -G47-, Removing And Installing: Removing

-- Raise the vehicle.

-- Release and disconnect the connector -1-.

Fig 1: Identifying Speed Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -arrow-.

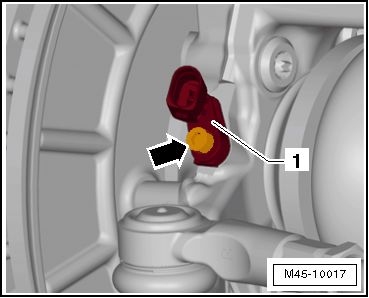

Fig 2: Identifying Speed Sensor Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Front Speed Sensor -1- from the wheel bearing housing.
