Overview - Rear Axle Speed Sensor

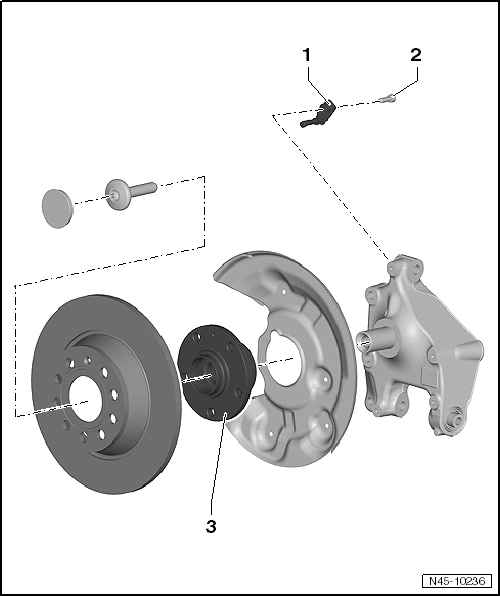

Fig 1: Exploded View Of Rear Axle Speed Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Rear Speed Sensor
   • Before inserting the sensor, clean inner surface of the hole and coat with Hot Bolt Paste G 052 112 A3.
   • Removing and installing. Refer to RIGHT/LEFT REAR ABS WHEEL SPEED SENSOR -G44- / -G46-, REMOVING AND INSTALLING .
2. Bolt
   • 8 Nm
3. Wheel Bearing Unit
   • The ABS sensor ring is installed in the wheel bearing

Sensor Ring for ABS 1

Fig 2: Sensor Ring for Anti-Lock Brake System (ABS) -1-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
