Overview - Right/Left Front Abs Wheel Speed Sensor -G45- / -G47-

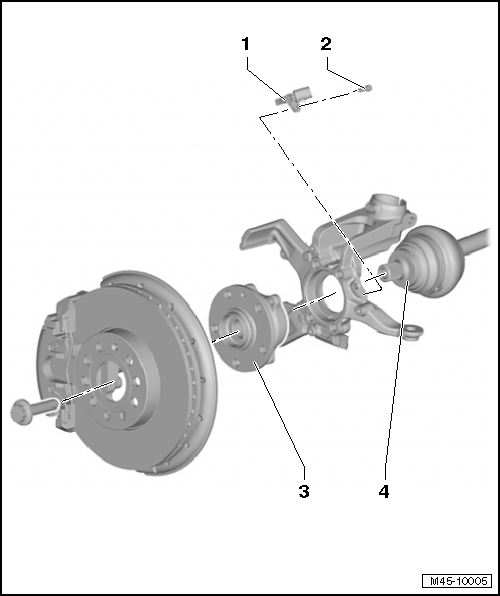

Fig 1: Exploded View Of Front Axle Speed Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Front Speed Sensors
   • Before inserting the sensor, clean the inner surface of the hole and coat with Hot Bolt Paste.
   • Removing and installing. Refer to RIGHT/LEFT FRONT ABS WHEEL SPEED SENSOR -G45- / -G47-, REMOVING AND INSTALLING .
2. Bolt
   • 8 Nm
3. Wheel Bearing Unit
   • The ABS sensor ring is installed in the wheel bearing
4. Drive Axle
