BRAKE LINES, ATTACHING TO ABS Hydraulic Unit -N55-, RHD (ABS MARK 60 EC ABS/EDL/ASR/ESP)
Installation location:
- Brake Booster with Tandem Brake Master Cylinder
- ABS Hydraulic Unit -N55- with ABS Control Module -J104-
Do not confuse the brake lines when connecting them to the tandem master cylinder and the ABS Hydraulic Unit -N55-. Mark the lines in their installed position before removing them.
On tandem master brake cylinder:
A - Master Brake Cylinder Primary Piston Circuit to the ABS Hydraulic Unit -N55-.
- Identification: 6.5 mm diameter and tube fitting with a M12 x 1 thread
B - Master Brake Cylinder Secondary Piston Circuit to the ABS Hydraulic Unit -N55-.
- Identification: 6.5 mm diameter and tube fitting with a M12 x 1 thread
4 - ABS Hydraulic Unit -N55- to the Right Front Brake Caliper

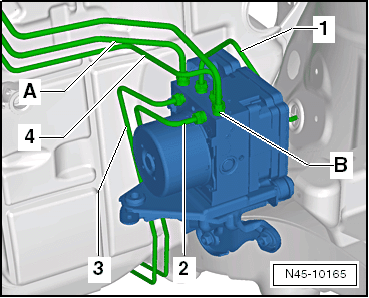

On the ABS Hydraulic Unit -N55- :
A - ABS Hydraulic Unit -N55- to the Master Brake Cylinder Primary Piston Circuit
- Identification: 6.5 mm diameter and tube fitting with a M12 x 1 thread
B - ABS Hydraulic Unit -N55- to the Master Brake Cylinder Secondary Piston Circuit
- Identification: 6.5 mm diameter and tube fitting with a M12 x 1 thread
1 - ABS Hydraulic Unit -N55- to the Left Front Brake Caliper
- Identification: 5.25 mm diameter and tube fitting with a M10 x 1 thread
2 - ABS Hydraulic Unit -N55- to the Left Rear Brake Caliper
- Identification: 5.25 mm diameter and tube fitting with a M12 x 1 thread
3 - ABS Hydraulic Unit -N55- to the Right Rear Brake Caliper
- Identification: 5.25 mm diameter and tube fitting with a M10 x 1 thread
4 - ABS Hydraulic Unit -N55- to the Right Front Brake Caliper
- Identification: 5.25 mm diameter and tube fitting with a M12 x 1 thread
