Abs Mark 60 Ed, Abs, Eds, ASR And Esp, Vehicles With Electro-Magnetic Power Steering
WARNING: This page is about a different variant/trim than selected.

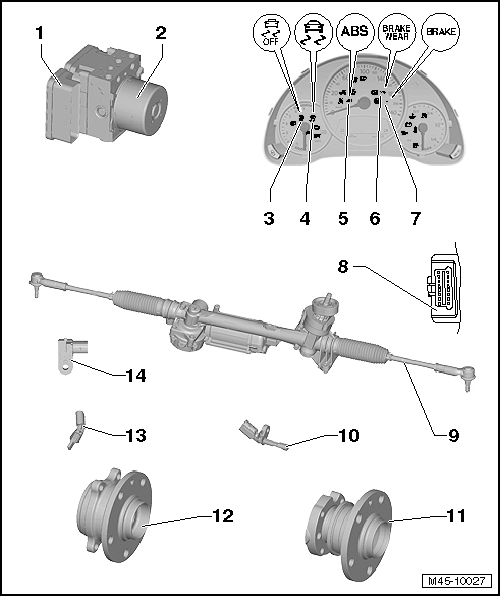

Fig 1: Identifying Components Location Overview - ABS Mark 60 ED, ABS, EDS, ASR And ESP, Vehicles With Electro-Magnetic Power Steering, USA And Canada
- ABS Control Module -J104-
- Component location: on the ABS Hydraulic Unit -N55- inside the engine compartment on the right side.
- Do not disconnect the connector before successfully completing OBD. Switch off the ignition before disconnecting the connector.
The following components are integrated inside the ABS Control Module -J104- :
- Transverse Acceleration Sensor -G200-
- Rotation Rate Sensor -G202-
- Longitudinal Acceleration Sensor -G251- (depending on vehicle equipment)
- Removing and installing. Refer to ABS Control Module -J104- /ABS Hydraulic Unit -N55-, REMOVING AND INSTALLING, WITH 4-CYLINDER GASOLINE ENGINE AND ABS MARK 60 EC ABS/EDL/ASR/ESP .
- ABS Hydraulic Unit -N55-
- Component location: in the engine compartment on the right side
The ABS Hydraulic Unit -N55- consists of the following components:
- ABS Hydraulic Pump -V64-
- Brake Pressure Sensor 1 -G201-
- Valve block (contains intake and exhaust valves)
- The ABS Hydraulic Pump -V64- and valve block must not be separated from one another.
- Removing and installing. Refer to ABS Control Module -J104- /ABS Hydraulic Unit -N55-, REMOVING AND INSTALLING, WITH 4-CYLINDER GASOLINE ENGINE AND ABS MARK 60 EC ABS/EDL/ASR/ESP .
- Component location: in the engine compartment on the right side
- ESC Off Indicator Lamp
- Component location: in the instrument cluster
- ESC Off Indicator Lamp
- Component location: in the instrument cluster
- ABS Indicator Lamp -K47-
- Component location: in the instrument cluster
- Brake Pad Wear Indicator Lamp -K32-
- Component location: in the instrument cluster
- Brake System Indicator Lamp -K118-
- Component location: in the instrument cluster
- Data Link Connector
- Component location: driver side footwell cover
- Steering Gear
- With Steering Angle Sensor -G85-
- Removing and installing. Refer to STEERING ANGLE SENSOR -G85-, REMOVING AND INSTALLING .
- Use the Vehicle Diagnostic Tester for the Steering Angle Sensor -G85- fault diagnostics
- Allocation. Refer to Vehicle Diagnostic Tester.
- Rear Speed Sensors
- Removing and installing. Refer to SENSORS .
- Rear Wheel Bearing Unit
- The ABS sensor ring is installed in the wheel bearing
- Front Wheel Bearing Unit
- The ABS sensor ring is installed in the wheel bearing
- Front Speed Sensors
- Removing and installing. Refer to SENSORS .
- Brake Lamp Switch -F-
- Including the Brake Pedal Switch -F47-
- Component location: on the brake master cylinder
- Removing and installing. Refer to BRAKE LAMP SWITCH, REMOVING AND INSTALLING .
