Abs Mark 60 EC, Abs, Eds, ASR And Esp, Vehicles Without Electro-Magnetic Power Steering

North America

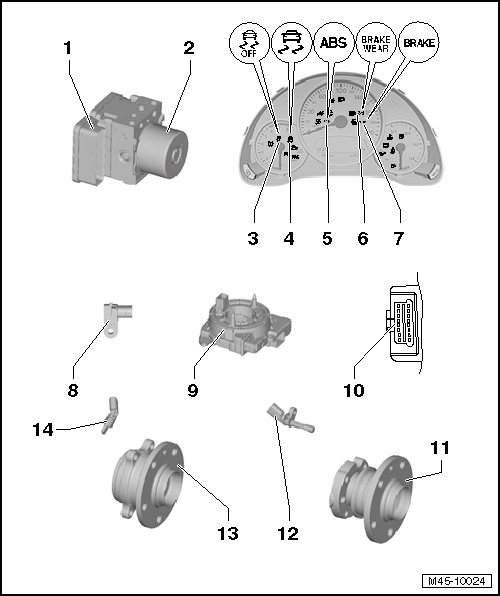

Fig 1: Identifying Components Location Overview - ABS Mark 60 EC, ABS, EDS, ASR And ESP, Vehicles Without Electro-Magnetic Power Steering, USA And Canada

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. ABS Control Module -J104-
   • Component location: on the ABS Hydraulic Unit -N55- inside the engine compartment on the right side.
   • Do not disconnect the connector before successfully completing OBD. Switch off the ignition before disconnecting the connector.

     The following components are integrated inside the ABS Control Module -J104- :

     • Transverse Acceleration Sensor -G200-
     • Rotation Rate Sensor -G202-
     • Longitudinal Acceleration Sensor -G251- (depending on vehicle equipment)
   • Removing and installing. Refer to ABS Control Module -J104- /ABS Hydraulic Unit -N55-, REMOVING AND INSTALLING .
   • Disconnecting from the ABS Hydraulic Unit -N55-. Refer to ABS Control Module -J104-, DISCONNECTING FROM ABS Hydraulic Unit -N55-, ABS MARK 60 EC .
2. ABS Hydraulic Unit -N55-
   • Component location: in the engine compartment on the right side

     The ABS Hydraulic Unit -N55- consists of the following components:

     • ABS Hydraulic Pump -V64-
     • Brake Pressure Sensor 1 -G201-
     • Valve block (contains intake and exhaust valves)
   • The ABS Hydraulic Pump -V64- and valve block must not be separated from one another.
   • Removing and installing. Refer to ABS Control Module -J104- /ABS Hydraulic Unit -N55-, REMOVING AND INSTALLING .
   • Disconnecting from the ABS Control Module -J104-. Refer to ABS Control Module -J104-, DISCONNECTING FROM ABS Hydraulic Unit -N55-, ABS MARK 60 EC .
3. ESC Off Indicator Lamp --
   • Component location: in the instrument cluster
4. ESC Indicator Lamp
   • Only on vehicles with ABS/EDL/ASR/ESP
   • Component location: in the instrument cluster
5. ABS Indicator Lamp -K47-
   • Component location: in the instrument cluster
6. Brake Pad Wear Indicator Lamp -K32-
   • Component location: in the instrument cluster
7. Brake System Indicator Lamp -K118-
   • Component location: in the instrument cluster
8. Brake Lamp Switch -F-
   • Including the Brake Pedal Switch -F47-
   • Component location: on the brake master cylinder
   • Removing and installing. Refer to BRAKE LAMP SWITCH, REMOVING AND INSTALLING .
9. Steering Angle Sensor -G85-
   • Removing and installing. Refer to STEERING ANGLE SENSOR -G85-, REMOVING AND INSTALLING
   • Allocation. Refer to Vehicle Diagnostic Tester.
   • Use the Vehicle Diagnostic Tester for fault diagnostics.
10. Data Link Connector
    • Component location: driver side footwell cover
11. Rear Wheel Bearing Unit
    • The ABS sensor ring is installed in the wheel bearing
12. Rear Speed Sensor
    • Removing and installing. Refer to SENSORS .
13. Front Wheel Bearing Unit
    • The ABS sensor ring is installed in the wheel bearing
14. Front Speed Sensors
    • Removing and installing. Refer to SENSORS .
