Cover And Cushion, Removing And Installing, Bench Seat: Removing

WARNING: This page is about a different variant/trim than selected.

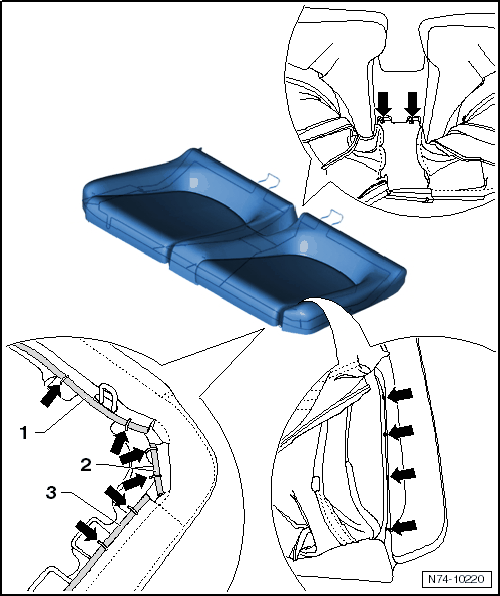

Fig 1: Locating Upholstery Clips

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Cut the upholstery clips -arrows- for the profile -1, 2 and 3- on the bottom of the bench seat.

NOTE:

The upholstery clips are destroyed during removal. They must be replaced when installing. Use the : VAG1634 for this.

-- Cut the remaining upholstery clips and roll up the cover on the edges.

-- Cut the remaining upholstery clips -arrows-.

-- Remove the cover from the cushion.
