Rear Seat Backrest, Removing And Installing, Sedan: Installing

WARNING: This page is about a different variant/trim than selected.

-- Position the backrest in the vehicle.

Fig 1: Identifying Backrest

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION:

Do not fold the backrest as long as the bench seat is not installed!

-- Install the bolt -1- by hand with the dual seat belt latch -2- but do not tighten it yet.

Fig 2: Identifying Bolt And Dual Seat Belt Latch

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

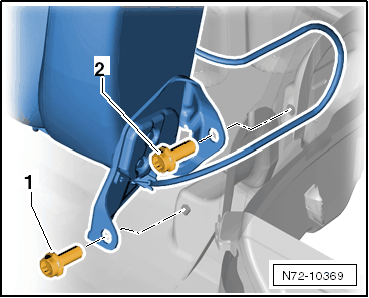

-- Tighten the bolts on both sides of the backrest -1 and 2- to the tightening specification.

Fig 3: Identifying Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the bolts -1 and 2- in the upper section of the spare wheel well to the tightening specification.

Fig 4: Identifying Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

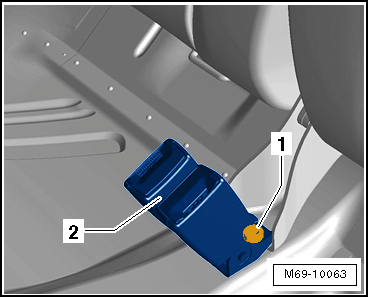

-- Tighten the bolt -1- to the tightening specification.

Fig 5: Identifying Bolt And Dual Seat Belt Latch

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

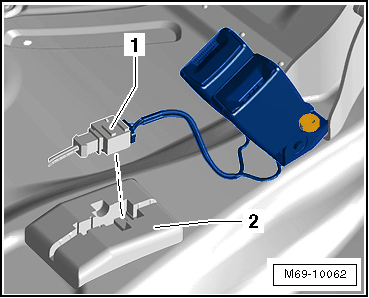

-- If equipped, connect the connector -1- and secure it in the bracket -2-.

Fig 6: Identifying Connector And Retainer

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

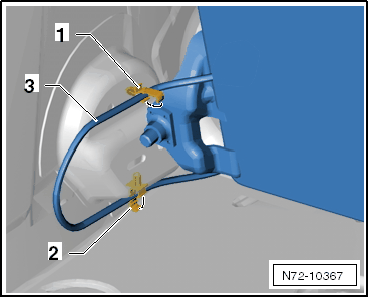

-- Install the cable -3- in the luggage compartment on both sides of the backrest by clipping it into the cable brackets -1 and 2-.

Fig 7: Identifying Release Cable And Brackets

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Further installation is the reverse order of removal.
