Rear Seat Backrest, Removing And Installing, Convertible: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the bench seat. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .

CAUTION:

Do not press the rear seat backrests onto the center backrest mounting! To prevent damage to the backrest cover, place a foam piece or similar material between the backrest mounting and the backrest!

-- Remove the luggage compartment carpet. Refer to LUGGAGE COMPARTMENT FLOOR, REMOVING AND INSTALLING .

-- Remove the rear dual seat belt latch. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING .

-- Remove the side trim panel. Refer to SIDE TRIM PANEL, REMOVING AND INSTALLING, CONVERTIBLE .

-- Remove the right and left luggage compartment trim panels. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING, CONVERTIBLE .

-- Unclip the release cable for the left and right rear seat backrest locking mechanism from the bracket on the body.

-- Remove the bolts -1 and 2- from the upper section of the spare wheel well.

Fig 1: Identifying Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

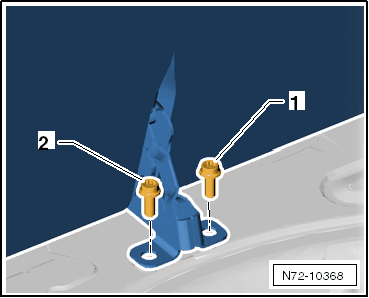

-- Remove the bolts on both sides of the backrest -1 and 2-.

Fig 2: Identifying Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

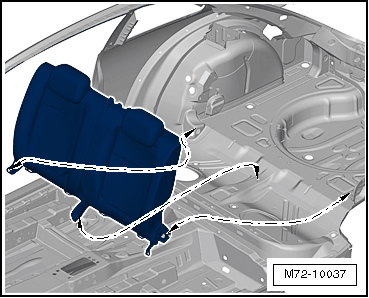

-- Remove the backrest from the vehicle.

Fig 3: Identifying Backrest

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
