Rear Seat Backrest Locking Mechanism, Removing And Installing, Convertible: Removing

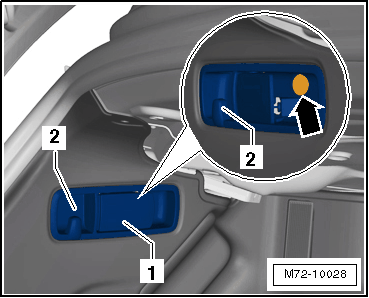

-- Pull the release lever -1- and release the backrest.

Fig 1: Identifying Release Lever

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pull and hold the release lever -1- and remove the pin -arrow- from the expanding rivet.

-- Pry out and remove the rear backrest release control -2- using the : 3409  .

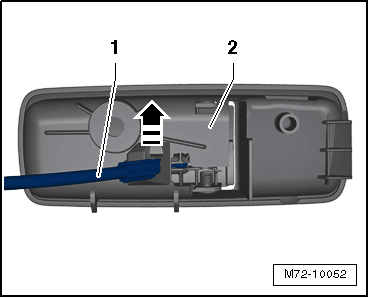

-- Disconnect the release cable -1- from the backrest release -2- in direction of -arrow-.

Fig 2: Identifying Release Cable And Backrest Release

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

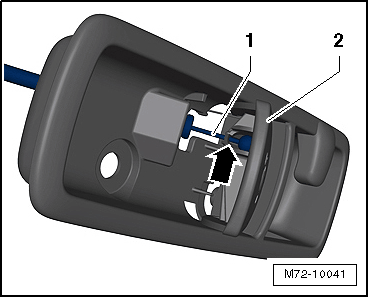

-- Disengage the ball stud -1- on the release cable -arrow- and remove the rear backrest release -2-.

Fig 3: Identifying Ball Stud On Release Cable

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
