Rear Seat Backrest Locking Mechanism, Removing And Installing, Convertible: Installing

WARNING: This page is about a different variant/trim than selected.

Install in reverse order of removal. Note the following:

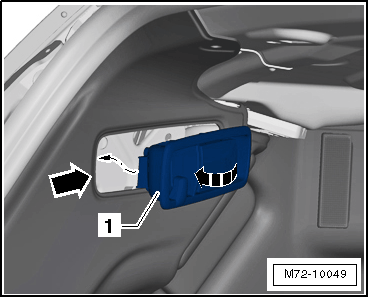

-- Insert the rear release lever -1- into the opening -arrow- and then pivot it into the trim panel in direction of -arrow-.

Fig 1: Identifying Release Lever

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pull the release lever -1-.

Fig 2: Identifying Release Lever

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pull and hold the release lever -1- and install the pin into the expanding rivet -arrow-.
