Rear Seat Backrest Locking Mechanism Cable, Removing And Installing: Removing

-- Remove the rear seat backrest. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING, CONVERTIBLE .

-- Unclip the release cable -1- on the rear seat backrest from the bracket.

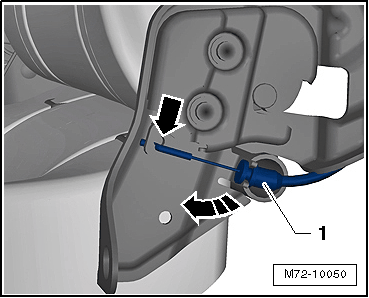

Fig 1: Identifying Release Cable

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn the release cable -1- approximately 90° in direction of -arrow- and disengage it from the rear seat backrest -arrow-.

-- Disconnect the release cable -1- from the backrest release -2- in direction of -arrow-.

Fig 2: Identifying Release Cable And Backrest Release

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disengage the ball stud -1- on the release cable -arrow- and remove the rear backrest release -2-.

Fig 3: Identifying Ball Stud On Release Cable

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
