Rear Seat Backrest Frame, Removing And Installing, Convertible: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the bench seat. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .

CAUTION:

Do not press the rear seat backrests onto the center backrest mounting! To prevent damage to the backrest cover, place a foam piece or similar material between the backrest mounting and the backrest!

-- Remove the cover and cushion. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, REAR SEAT BACKREST, CONVERTIBLE .

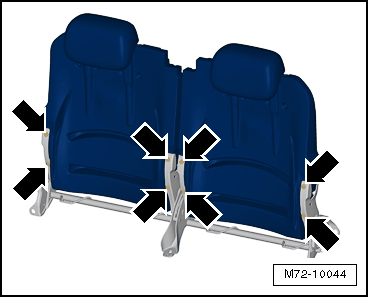

-- Remove the 8 bolts -arrows- on the front side.

Fig 1: Identifying Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

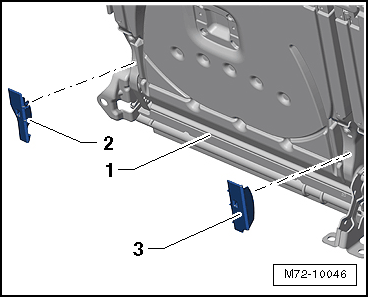

-- Using a screwdriver, pry caps -2 and 3- on both sides out of the mounts on the rear side of the backrest -1-.

Fig 2: Identifying Pry Caps

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

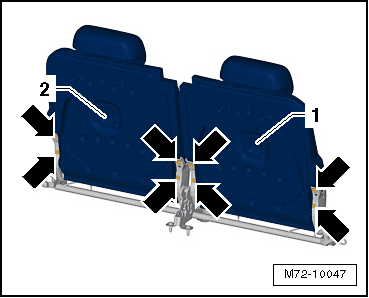

-- Remove the 8 bolts -arrows- on the rear side.

Fig 3: Identifying Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the backrest shells -1 and 2- upward from backrest frame.
