Headrest Guide, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Fold backrest down.

-- Press the button on the left headrest guide and remove the headrest.

-- Insert the : 3409  -1- together with the : T10236  -2- between the cushion and the headrest -3-.

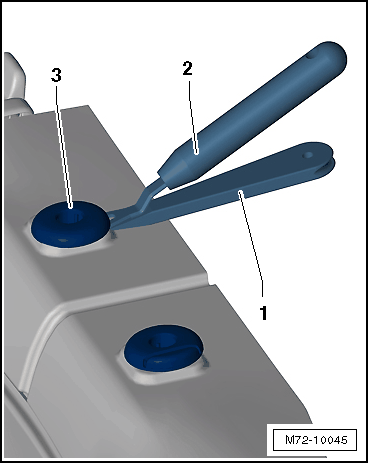

Fig 1: Identifying Trim Removal Wedge 3409, Window Release Tool T10236 And Headrest
GWWM72-10045Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the : 3409  -1- and the : T10236  -2- together and remove the headrest guide -3-.
