Bench Seat/Single Seat, Removing And Installing: Installing

WARNING: This page is about a different variant/trim than selected.

NOTE:

Before installation, check the 2 mounts -2- for damage and replace if necessary.

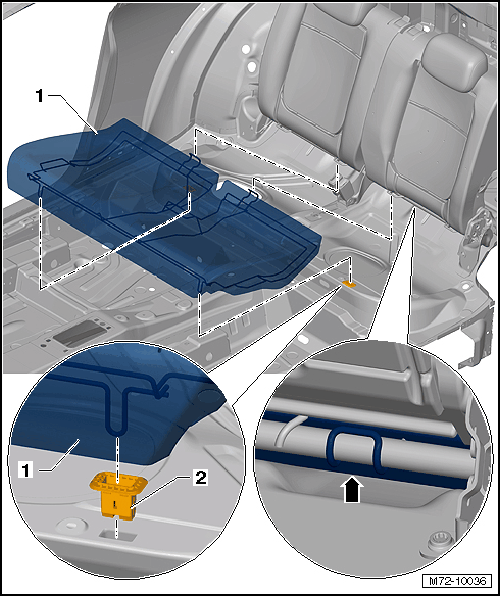

Fig 1: Identifying Bench Seat And Mounts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Slide the bench seat -1- at a 45° angle under the backrest.

NOTE:

The bench seat brackets must be located behind the pipe in the lower backrest area after their installation -arrow-.

-- Clip the bench seat into the mounts -2-.
