Backrest Release Pressure Pin, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.
CAUTION:

Do not load the rear seat backrest when it is folded down.

-- Unlock the rear backrest and fold it forward.

-- Release the backrest release pressure pin -1- with the : 80-200  -2- and remove it.

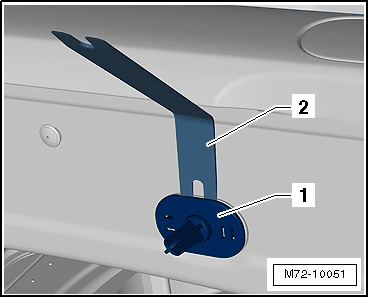

Fig 1: Identifying Backrest Release Pressure Pin And Pry Lever - RMV Outside Mirror 80-200
GWWM72-10051Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
