Sill-Side Seat Trim, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Position the seat into its highest position.

-- Remove the backrest adjusting wheel. Refer to BACKREST ADJUSTER, REMOVING AND INSTALLING .

-- Remove the seat height adjustment handle. Refer to SEAT HEIGHT ADJUSTMENT HANDLE, REMOVING AND INSTALLING .

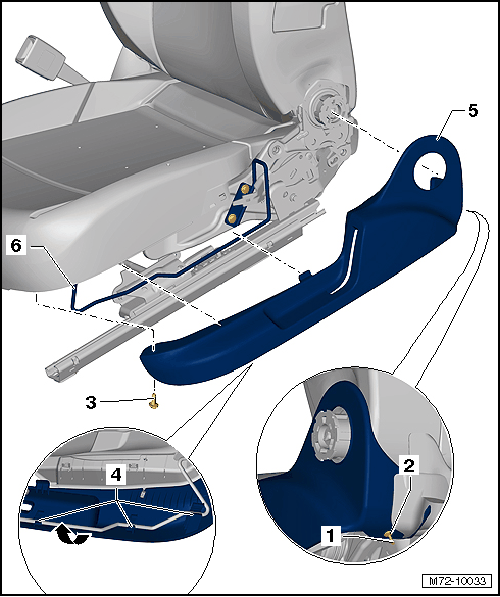

Fig 1: Identifying Clamping Pin, Expanding Clip, Screw, Tabs, Trim Panel And Bracket

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the clamping pin -1- inward and remove from the expanding clip -2-.

-- Remove the bolt -3-.

-- Open the tabs -4-.

-- Remove trim panel -5- outward from the bracket -6-.
