Seat Trim Bracket, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Position the seat into its highest position.

-- Remove the backrest adjusting wheel. Refer to BACKREST ADJUSTER, REMOVING AND INSTALLING .

-- Remove the seat height adjustment handle. Refer to SEAT HEIGHT ADJUSTMENT HANDLE, REMOVING AND INSTALLING .

-- Remove the trim on the door sill side. Refer to SILL-SIDE SEAT TRIM, REMOVING AND INSTALLING .

-- Remove the bolts -2- (quantity: 3).

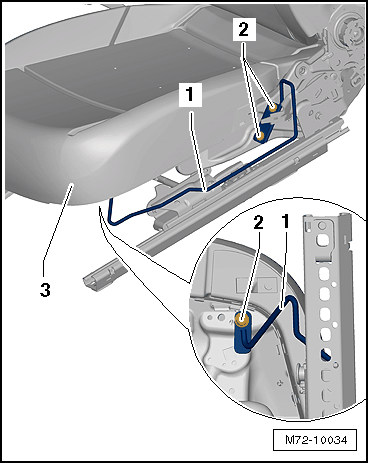

Fig 1: Identifying Bracket, Bolts And Front Seat

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bracket -1- from the front seat -3-.
