Seat Height Adjustment Handle, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

Fig 1: Identifying Seat Height Adjustment And Lever

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Remove the seat height adjustment -1- as instructed. Never remove the seat height adjustment from the lever -2-.

If the tab -arrow- gets damaged while removing the seat height adjustment handle, then it is not possible to install the handle again. The handle must be replaced.

-- Pull seat height adjustment handle -1- up as far as the stop and hold it in that position.

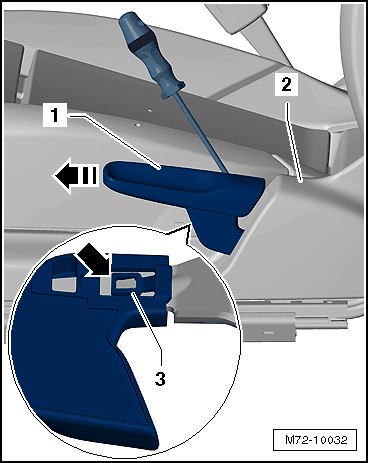

Fig 2: Identifying Seat Height Adjustment Handle

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Carefully pull the seat height adjustment slightly off the front seat.

-- Guide a small screwdriver between the seat height adjustment and the trim -2-.

-- Unlock the release -3- using the screwdriver and at the same time, pull the seat height adjustment handle in the direction of the -arrow- from the lever.
