Seat Height Adjustment Handle, Removing And Installing: Installing

WARNING: This page is about a different variant/trim than selected.

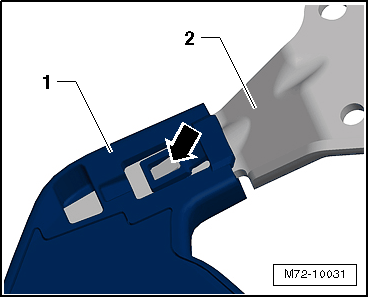

Fig 1: Identifying Seat Height Adjustment And Lever

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Install in reverse order of removal while noting the following:

-- Perform a visual inspection of the retaining strap -arrow-.

-- If damage can be seen on the tab, installed a new seat height adjustment handle -1-.

-- Make sure the tab in the seat height adjustment handle fits correctly into the notch on the lever.
