Seat Height Adjuster, Removing And Installing: Removing

-- Position the seat into its highest position.

-- Remove the backrest adjusting wheel. Refer to BACKREST ADJUSTER, REMOVING AND INSTALLING .

-- Remove the seat height adjustment handle. Refer to SEAT HEIGHT ADJUSTMENT HANDLE, REMOVING AND INSTALLING .

-- Remove the trim on the door sill side. Refer to SILL-SIDE SEAT TRIM, REMOVING AND INSTALLING .

-- Remove the bolts -2- (quantity: 2).

Fig 1: Identifying Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the lever for the seat height adjustment -1-.

-- Remove the lock washer -1-.

Fig 2: Identifying Lock Washer

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

The bolts -1- and the bolt -3- are different lengths. The bolt -3- is shorter.

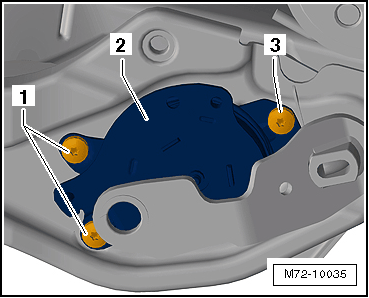

Fig 3: Identifying Seat Height Adjustment With Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -1- (quantity: 2) and -3-.

-- Remove the seat height adjuster -2-.
