Headrest, Removing And Installing

WARNING: This page is about a different variant/trim than selected.

Special tools and workshop equipment required

Removing

-- Push the cushion on the headrest guide in direction of -arrow-.

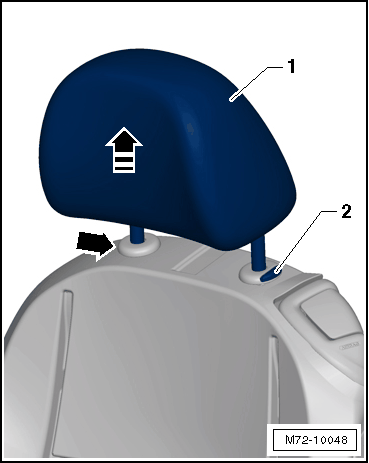

Fig 1: Identifying Cushion On Headrest Guide
GWWM72-10048Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push the headrest guide -arrow- all the way to the stop using the : 3409  .

-- Push the button -2- and pull the headrest -1- out of the backrest.
