Rear Three-Point Seat Belt, Removing And Installing, Convertible: Removing

-- Remove the rear panel upper trim panel. Refer to REAR PANEL TRIM PANELS, REMOVING AND INSTALLING, UPPER REAR PANEL TRIM PANEL .

-- Remove the clips -arrows- from the center of the rear panel trim panel.

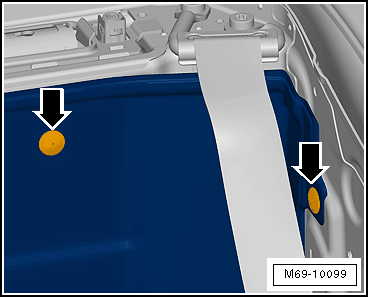

Fig 1: Identifying Clips

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the clip -arrow- from the luggage compartment side trim panel.

Fig 2: Identifying Clip

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -arrows- and the belt relay -1-.

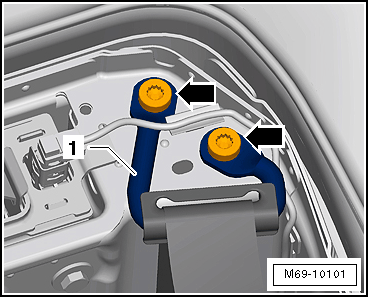

Fig 3: Identifying Bolts And Belt Relay

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the seat belt from the belt relay.

-- Fold down the automatic belt retractor trim.

-- Remove the bolt -arrow- and the belt end fitting -1-.

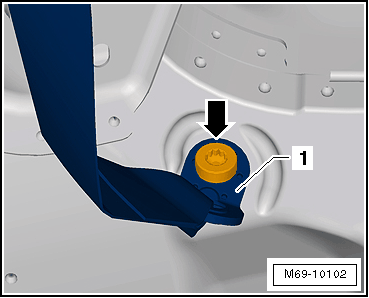

Fig 4: Identifying Bolt And Belt End Fitting

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -arrow- and the automatic belt retractor -1- from the mount.

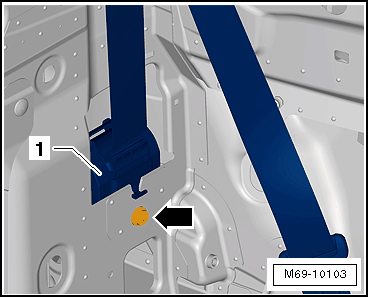

Fig 5: Identifying Bolt And Automatic Belt Retractor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
