Overview - Front Three-Point Seat Belt, Convertible

WARNING: This page is about a different variant/trim than selected.

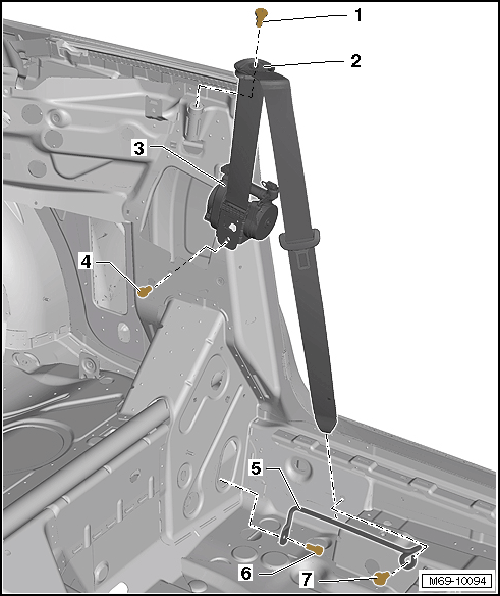

Fig 1: Identifying Front Three-Point Seat Belt Components Overview (Convertible)
GWWM69-10094Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Bolt
    • 40 Nm
  2. Seat Belt Guide
  3. Automatic Belt Retractor
  4. Bolt
    • 40 Nm
    • Micro-encapsulated, replace after each loosening
  5. Belt Guide Bracket
  6. Bolt
    • 20 Nm
  7. Bolt
    • 40 Nm
