Front Three-Point Seat Belt, Removing And Installing, Convertible: Removing

WARNING: This page is about a different variant/trim than selected.

WARNING:

Follow the Safety Precautions when working with airbags, belt tensioners and battery cut-out units (pyrotechnic components). Refer to SAFETY PRECAUTIONS .
Refer to the special information regarding seat belt tensioners. Refer to BELT TENSIONER SAFETY PRECAUTIONS .

-- Disconnect the battery ground cable with the ignition turned on. Refer to BATTERY, DISCONNECTING AND CONNECTING .

-- Remove the side trim panel. Refer to SIDE TRIM PANEL, REMOVING AND INSTALLING, CONVERTIBLE .

-- Remove the sill panel. Refer to SILL PANEL, REMOVING AND INSTALLING .

-- Remove the bracket for the belt guide. Refer to FRONT SEAT BELT GUIDE, REMOVING AND INSTALLING .

-- Guide the belt out of the belt guide bracket.

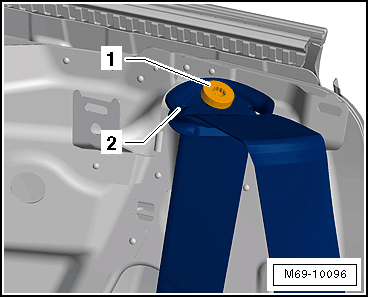

-- Remove the bolt -1- and the belt -2- and belt relay.

Fig 1: Identifying Bolt And Belt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

WARNING:

Electrostatic charges may result in involuntary deployment of the belt tensioner. Therefore the technician must discharge static electricity from the body before separating the ignition and ground wiring. This is done, for example, by briefly touching the body or door striker.

USA Only

Fig 2: Identifying Connectors And Automatic Belt Retractor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connectors -1- from the automatic belt retractor -2-.

Continuation for All Vehicles

-- Disconnect the connector -2- from the seat belt retractor -1-.

Fig 3: Identifying Connector

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Fig 4: Identifying Screw, Automatic Belt Retractor And Tabs

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -1-.

-- Remove the automatic belt retractor -2- and the tabs -3- from the B-pillar in direction of -arrow-.
