Front Seat Belt Latch, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Attach the :VAS6136 on the :VAS6095A .

-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .

-- Secure the seat on the :VAS6136 .

-- Move the seat all the back.

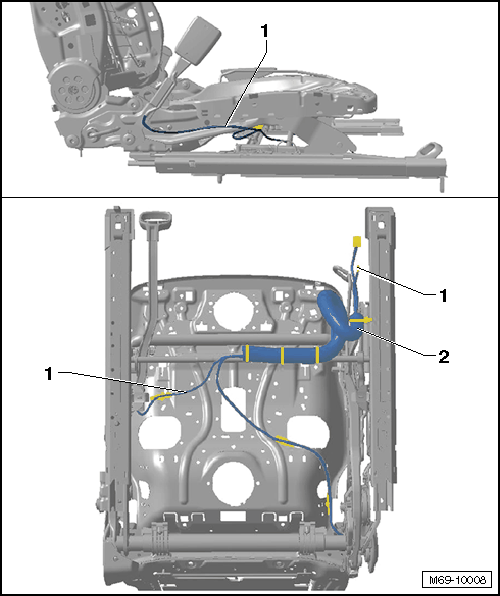

Fig 1: Guide The Wiring Harness -1- Out Of The Seat Wiring Harness -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the wiring harness -1- from the seat frame.

-- Guide the wiring harness -1- out of the seat wiring harness -2-.

Fig 2: Identifying Seat Belt Latch And Mount

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -2-.

NOTE:

Bolt -2- is micro-encapsulated and must be replaced after each loosening.

Before installing the new bolt, threads on nut must be cleaned, re-cut if necessary.

-- Remove the seat belt latch -1- from the mount -3-.
