Front Seat Belt Latch, Removing And Installing: Installing

WARNING: This page is about a different variant/trim than selected.

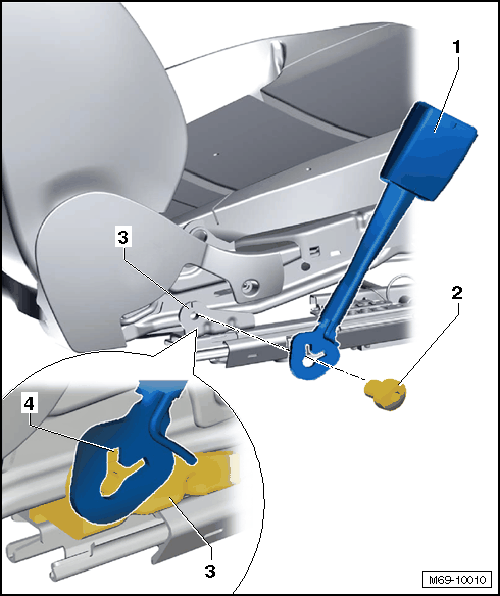

Fig 1: Identifying Seat Belt Latch And Mount
GWWM69-10010Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position the seat belt latch -1- on the mount -3- so that the pin -4- locks into the seat belt latch -1-.

-- Perform the rest of the installation in the reverse order of removal.
