Front Seat Belt Guide, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the sill panel. Refer to SILL PANEL, REMOVING AND INSTALLING .

-- Remove the bolt -1-.

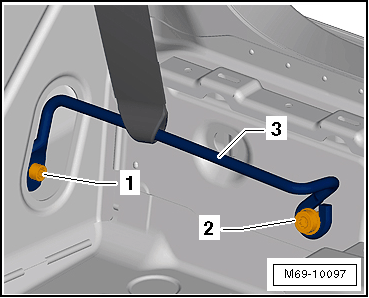

Fig 1: Identifying Bolts And Belt Guide Bracket

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -2-.

-- Remove the seat belt loop from the belt guide bracket -3-.
