Front Passenger Seat Occupant Detection Sensor -G128-, REMOVING AND INSTALLING: Installing

WARNING: This page is about a different variant/trim than selected.

-- Position the Front Passenger Occupant Detection Sensor -G128- -1- and the clip and secure -2- them.

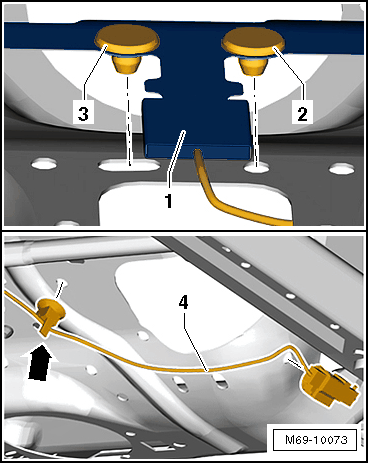

Fig 1: Identifying Front Passenger Seat Occupied Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the clip -3- and guide the wiring harness -4- through the seat frame.

-- Secure the wiring harness -4- to the seat frame -arrow-.

-- Connect the wiring harness to the vehicle electrical system.

Installing of remaining components is in reverse order of removal.

-- After installation, perform a function check with the ignition on.
