Overview - Rollover Protection

WARNING: This page is about a different variant/trim than selected.

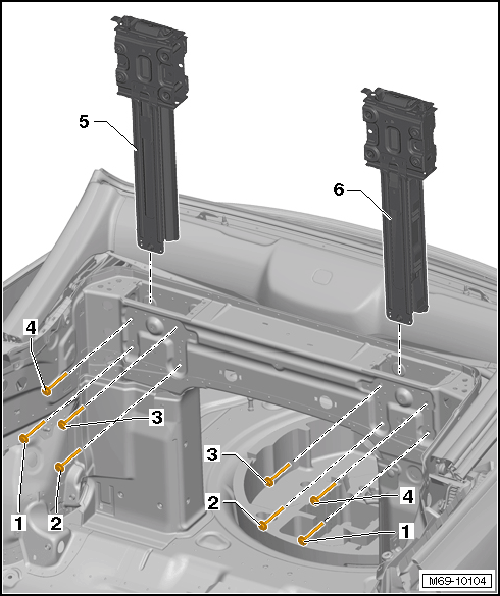

Fig 1: Identifying Rollover Protection Components Overview

GWWM69-10104

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bolt
- 20 Nm
- Always replace
  Follow the Tightening Sequence:
Bolt
- 20 Nm
- Always replace
  Follow the Tightening Sequence:
Bolt
- 20 Nm
- Always replace
  Follow the Tightening Sequence:
Bolt
- 20 Nm
- Always replace
  Follow the Tightening Sequence:
Right Rollover Protection
- Removing and Installing . Refer to ROLLOVER PROTECTION, REMOVING AND INSTALLING .
Left Rollover Protection
- Removing and Installing . Refer to ROLLOVER PROTECTION, REMOVING AND INSTALLING .
