Passenger Occupant Detection System, Removing And Installing, Passenger Occupant Detection System Control Module Bracket: Removing

WARNING: This page is about a different variant/trim than selected.

-- Attach the :VAS6136  on the :VAS6095A  .

-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .

-- Secure the seat on the :VAS6136  .

-- Remove the Passenger Occupant Detection System Control Module -J706-. Refer to PASSENGER OCCUPANT DETECTION SYSTEM, REMOVING AND INSTALLING, PASSENGER OCCUPANT DETECTION SYSTEM CONTROL MODULE .

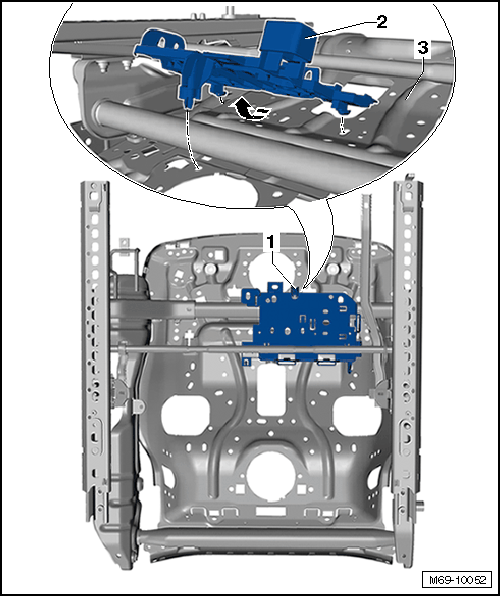

Fig 1: Identifying Bracket & Seat Frame
GWWM69-10052Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the clips -1-.

-- Remove the bracket -2- from the seat frame -3- in direction of -arrow-.
