Front Passenger Airbag Deactivation Key Switch, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Turn off the ignition and all electrical equipment and remove the ignition key.

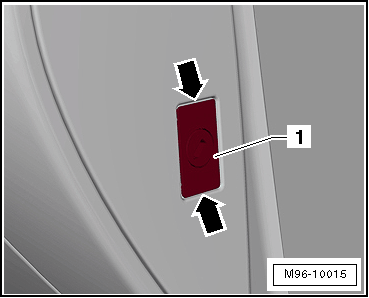

-- Open the tabs -arrows- and remove the Front Passenger Airbag Deactivation Key Switch -E224- -1-.

GWWM96-10015Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unlock and disconnect the connector.
