Overview - Rear Child Seat Anchors

WARNING: This page is about a different variant/trim than selected.

Top Tether

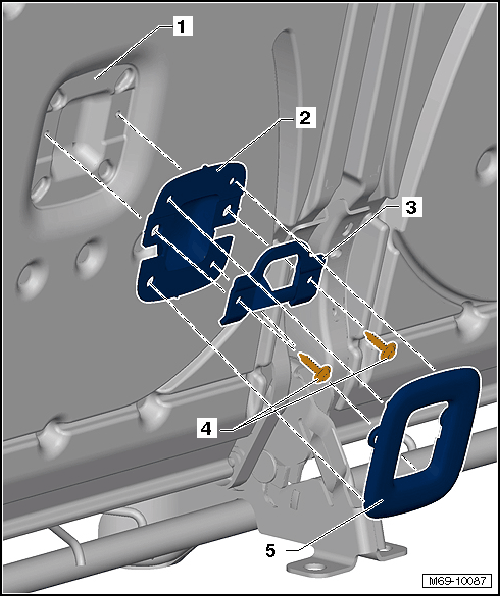

Fig 1: Identifying Bolts, Bracket, Inner Trim Panel And Backrest

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Backrest
Inner Trim
- Removing and installing . Refer to REAR CHILD SEAT ANCHOR, REMOVING AND INSTALLING, TOP TETHER .
Retainer
- Removing and installing . Refer to REAR CHILD SEAT ANCHOR, REMOVING AND INSTALLING, TOP TETHER .
Bolt
- 4 Nm
- Quantity: 4
Outer Trim
- Removing and installing . Refer to REAR CHILD SEAT ANCHOR, REMOVING AND INSTALLING, TOP TETHER .
