Component Location Overview - Airbag System

WARNING: This page is about a different variant/trim than selected.

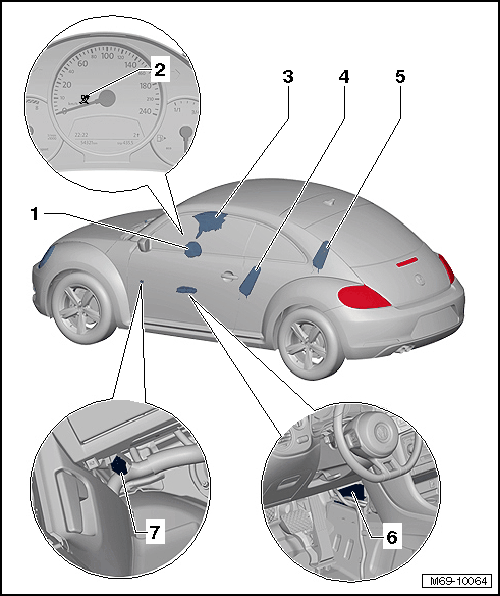

Fig 1: Identifying Airbag System Components Location

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Driver Side Airbag Unit
- Removing and Installing . Refer to AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING .
Airbag Indicator Lamp -K75-
Front Passenger Side Airbag Unit
- Removing and Installing . Refer to FRONT PASSENGER AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING .
Thorax Airbag on Driver Side
- Removing and Installing . Refer to FRONT THORAX AIRBAG WITH IGNITER, REMOVING AND INSTALLING .
Thorax Airbag on Front Passenger Side
- Removing and Installing . Refer to FRONT THORAX AIRBAG WITH IGNITER, REMOVING AND INSTALLING .
Airbag Control Module -J234-
- Removing and Installing . Refer to Airbag Control Module -J234-, REMOVING AND INSTALLING .
Diagnostic Connector
