Airbag Control Module -J234-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

WARNING:

When working on the Airbag Control Module -J234-, follow the general safety precautions for working on airbag, belt tensioner and battery cut-out units (pyrotechnic components). Refer to SAFETY PRECAUTIONS .

-- Disconnect the battery ground cable with the ignition turned on. Refer to BATTERY, DISCONNECTING AND CONNECTING .

-- Remove the bolt -1-.

Fig 1: Identifying Screw And Trim

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the trim panel -2-.

NOTE:

The other parts of the center console do not need to be removed.

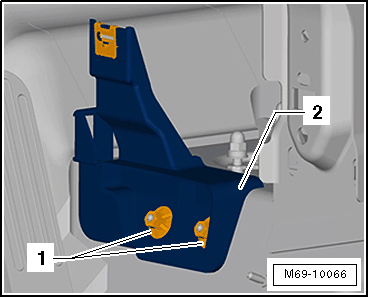

-- Remove the nuts -1-.

Fig 2: Identifying Nuts And Bracket

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bracket -2- from the center tunnel.

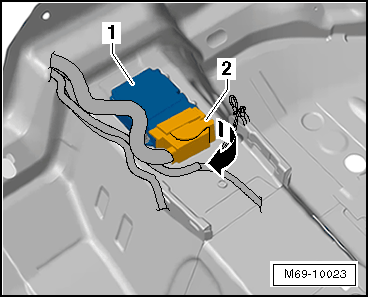

-- Open the locking mechanism -1- on the connector in the direction of -arrow-.

Fig 3: Open The Locking Mechanism -1- On The Connector In -Direction Of Arrow

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the wiring harness from the control module -1-.

NOTE:

The control module is shown in the illustration without the other components around it.

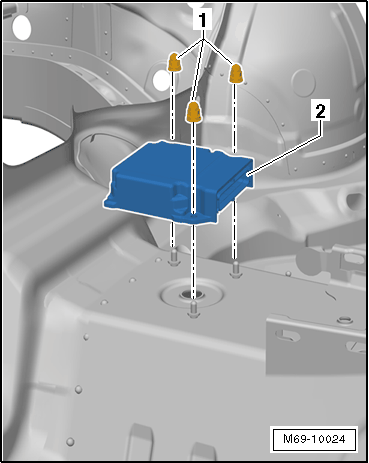

-- Remove the nuts -1-.

Fig 4: Identifying Control Module With Nuts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the control module -2- from the center tunnel.
